Mobile Jaw Crushers

Mobile jaw crushers of Jawtrack series are the perfect combination of compactness, mobility and high performance featuring imposing jaw crushers from the performant BCK jaw crusher series of Boratas Machinery. These mobile crushers are usually used in primary crushing in multistage crushing processes, Jawtrack jaw crushers are able to crush all types of natural stones and can be used in aggregate production, mining and recycling.

Ideal For;



  • Recycling applications such as asphalt and concrete
  • Granite and natural stones with medium-hard level of hardness and high abrasivity
  • Multistage crushing and screening applications
  • Users in urban regions who are interested in compactness



Jawtrack mobile jaw crusher models :

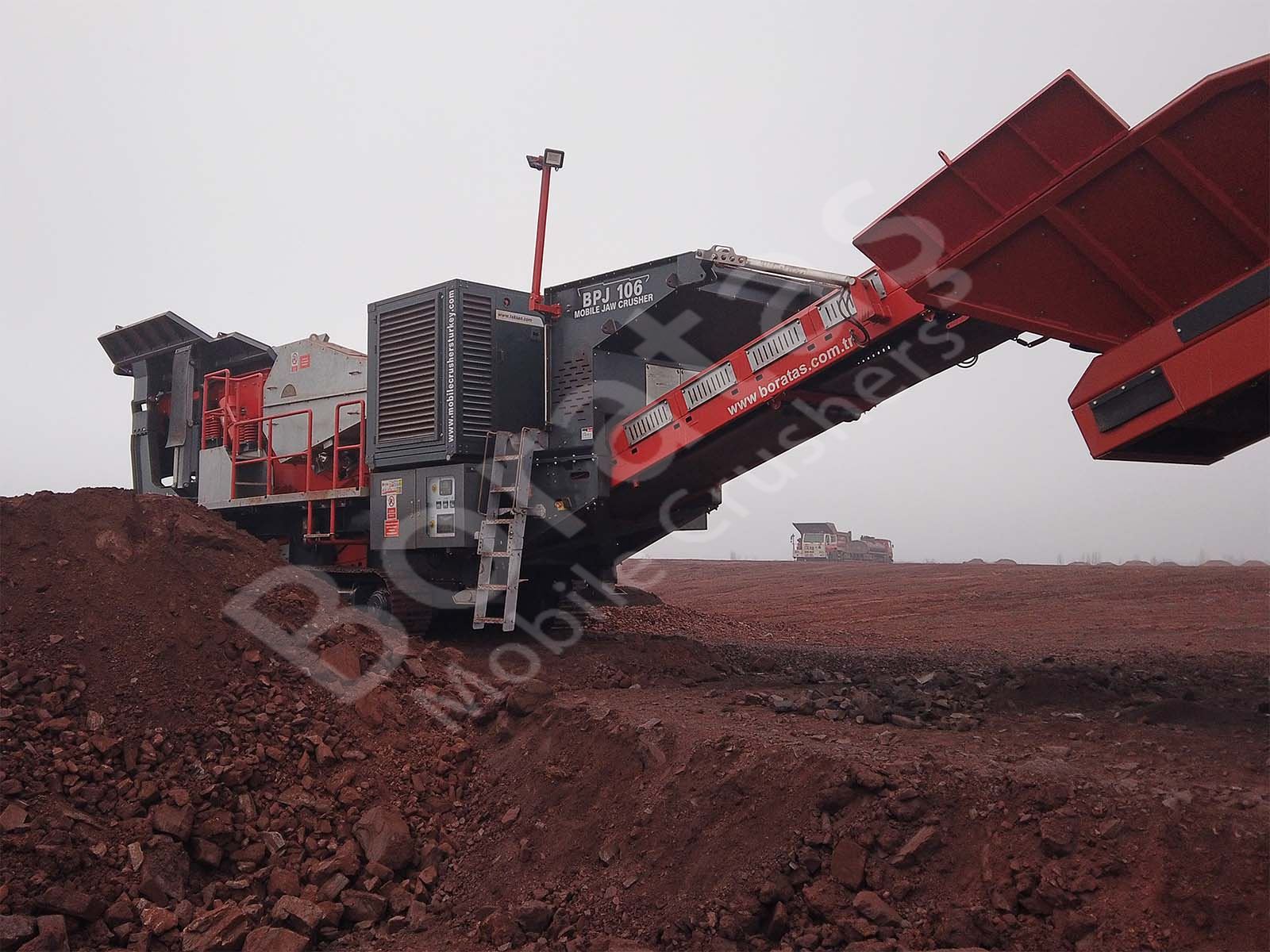

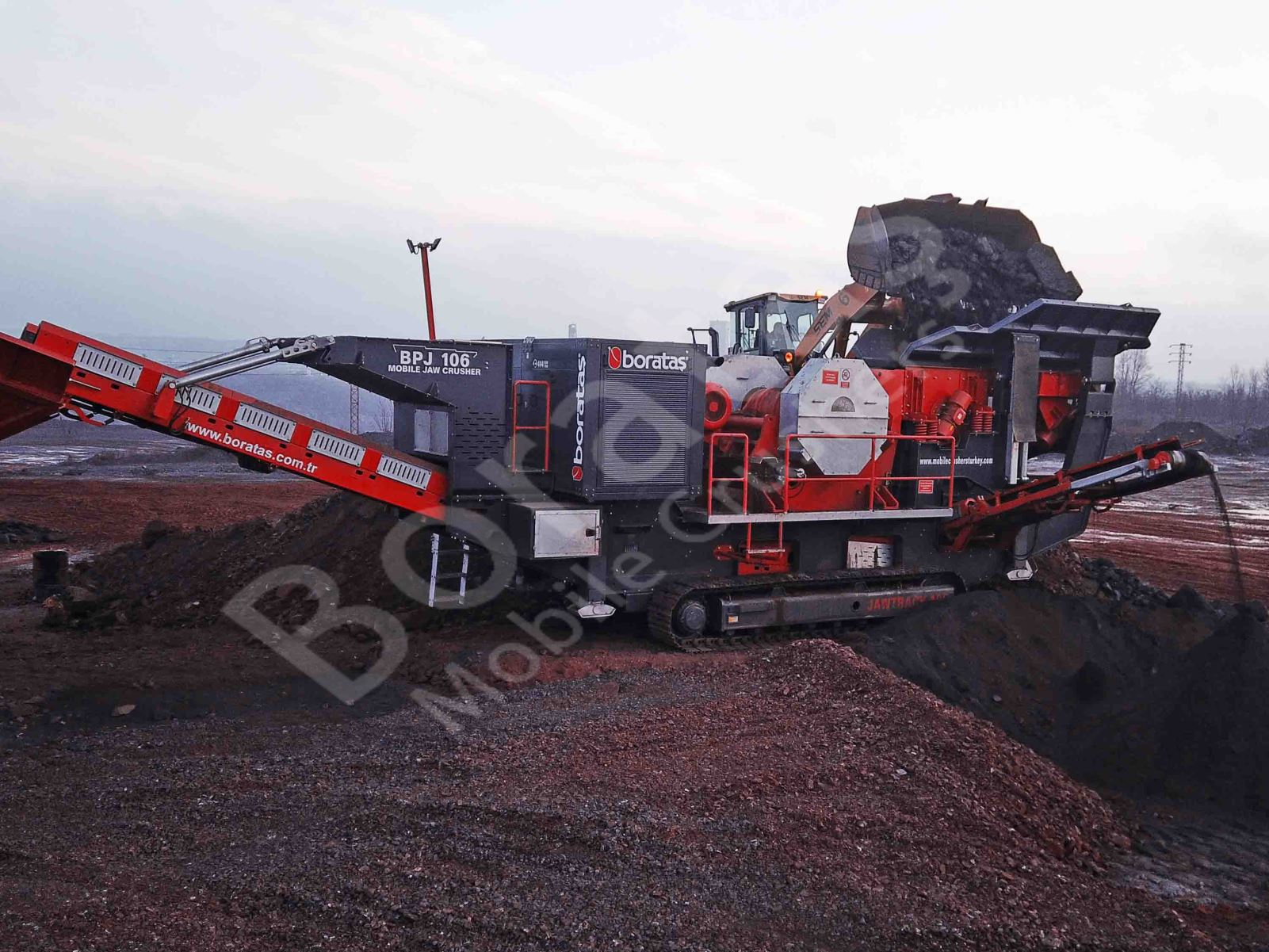

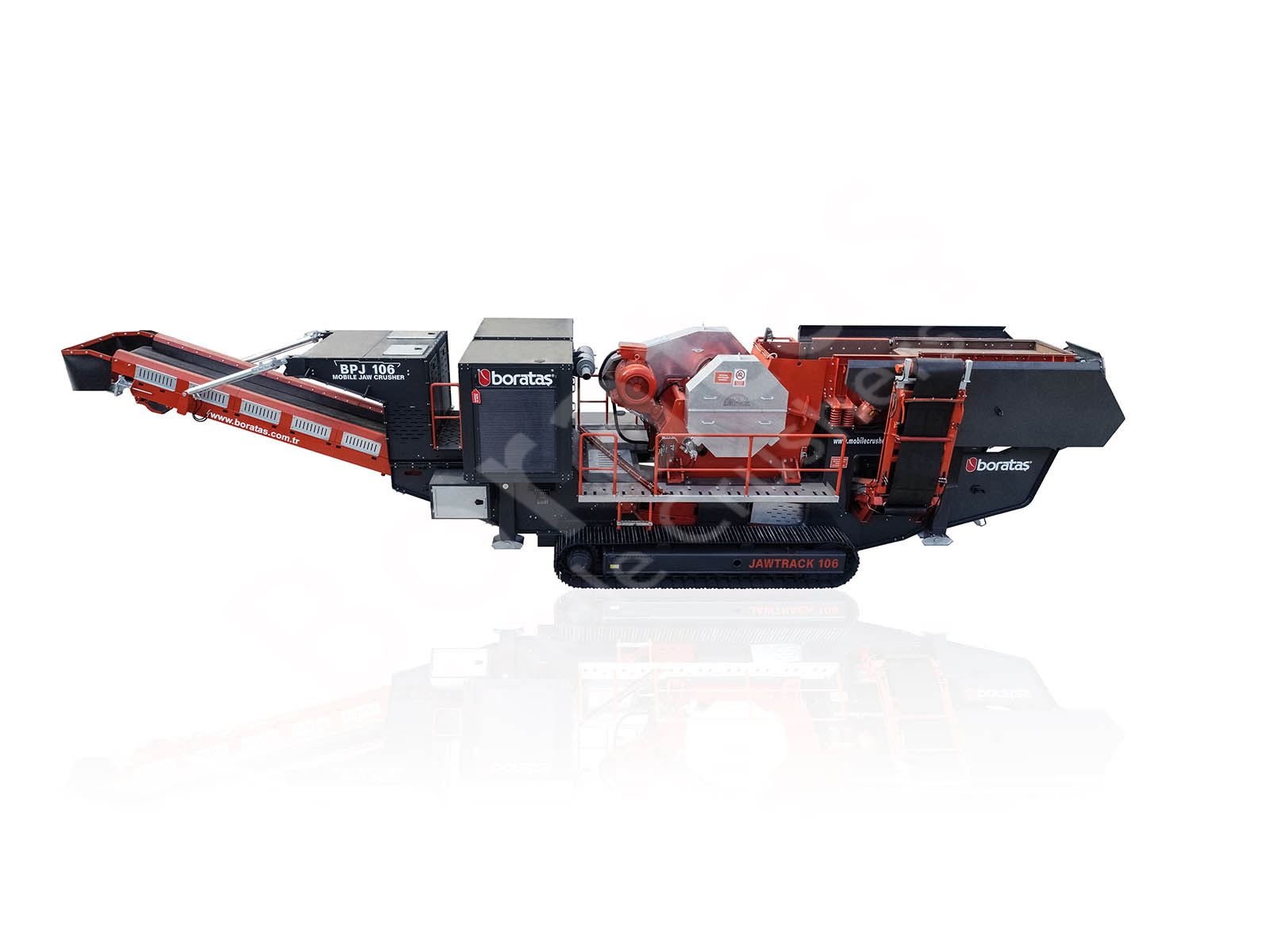

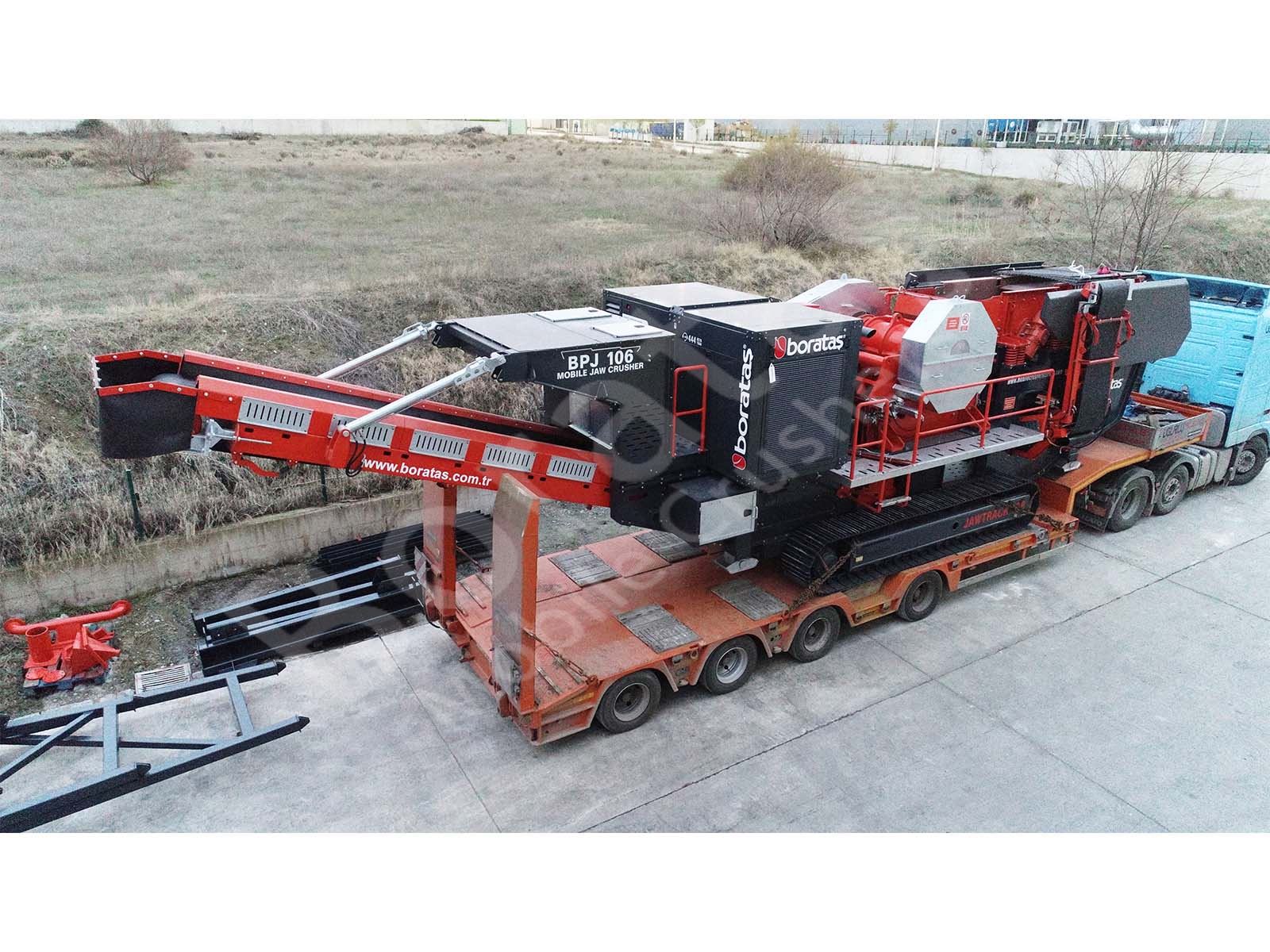

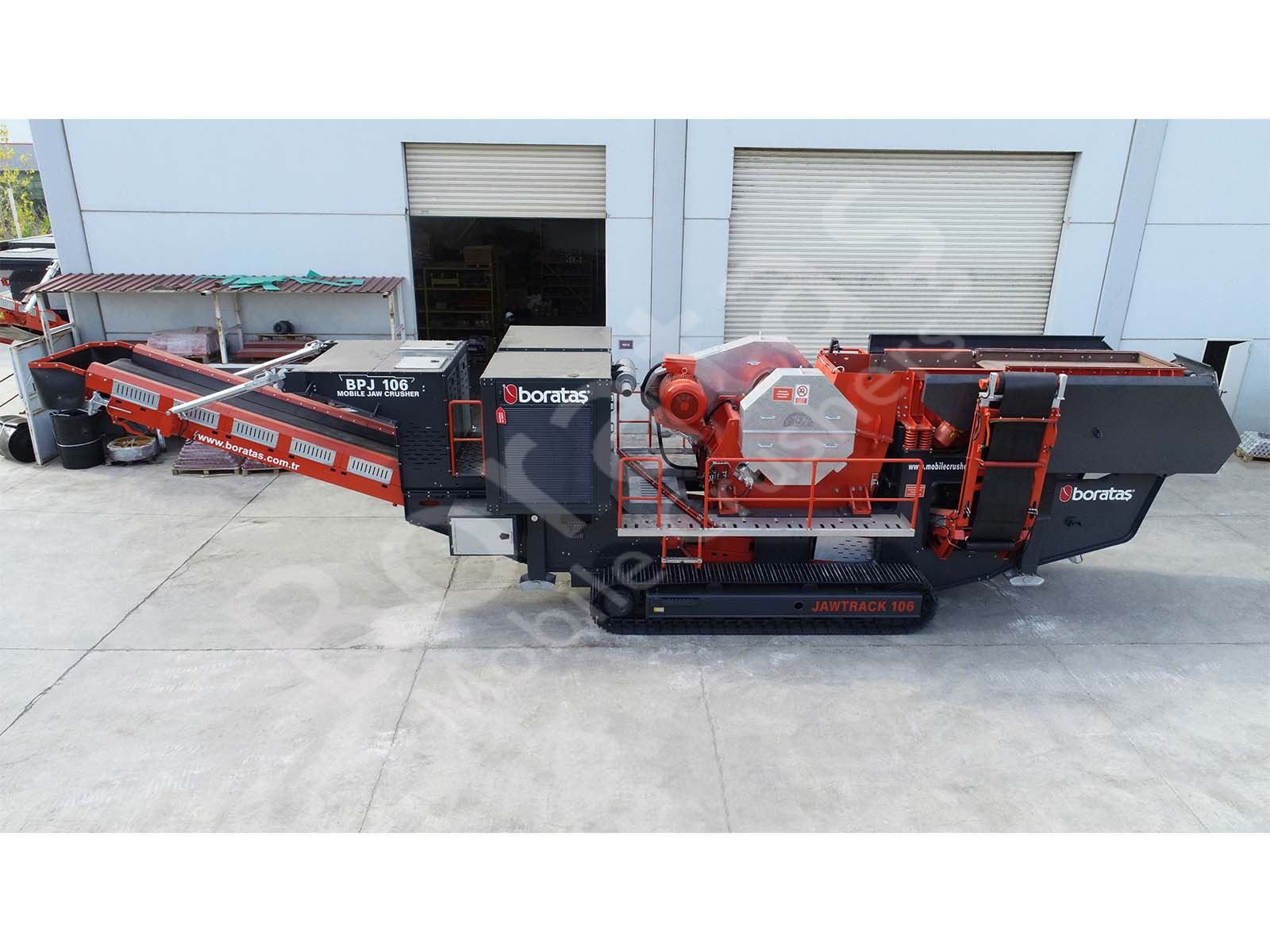

Jawtrack Jaw Crusher BPJ106

Having a capacity up to 250 tph, Jawtrack Jaw Crusher BPJ106 is ideal for users seeking a capacity of 100-250 tph. This mobile unit features a robust and highly efficient jaw crusher with an opening size of 1.000x600mm with a high crushing capacity even at tight settings.

Jawtrack Jaw Crusher BPJ120

Having a capacity up to 350 tph, Jawtrack Jaw Crusher BPJ106 is ideal for users seeking a high capacity of 150-350 tph. This mobile unit features a robust and highly efficient jaw crusher with an opening size of 1.200x750mm with a high crushing capacity even at tight settings.

High Mobility

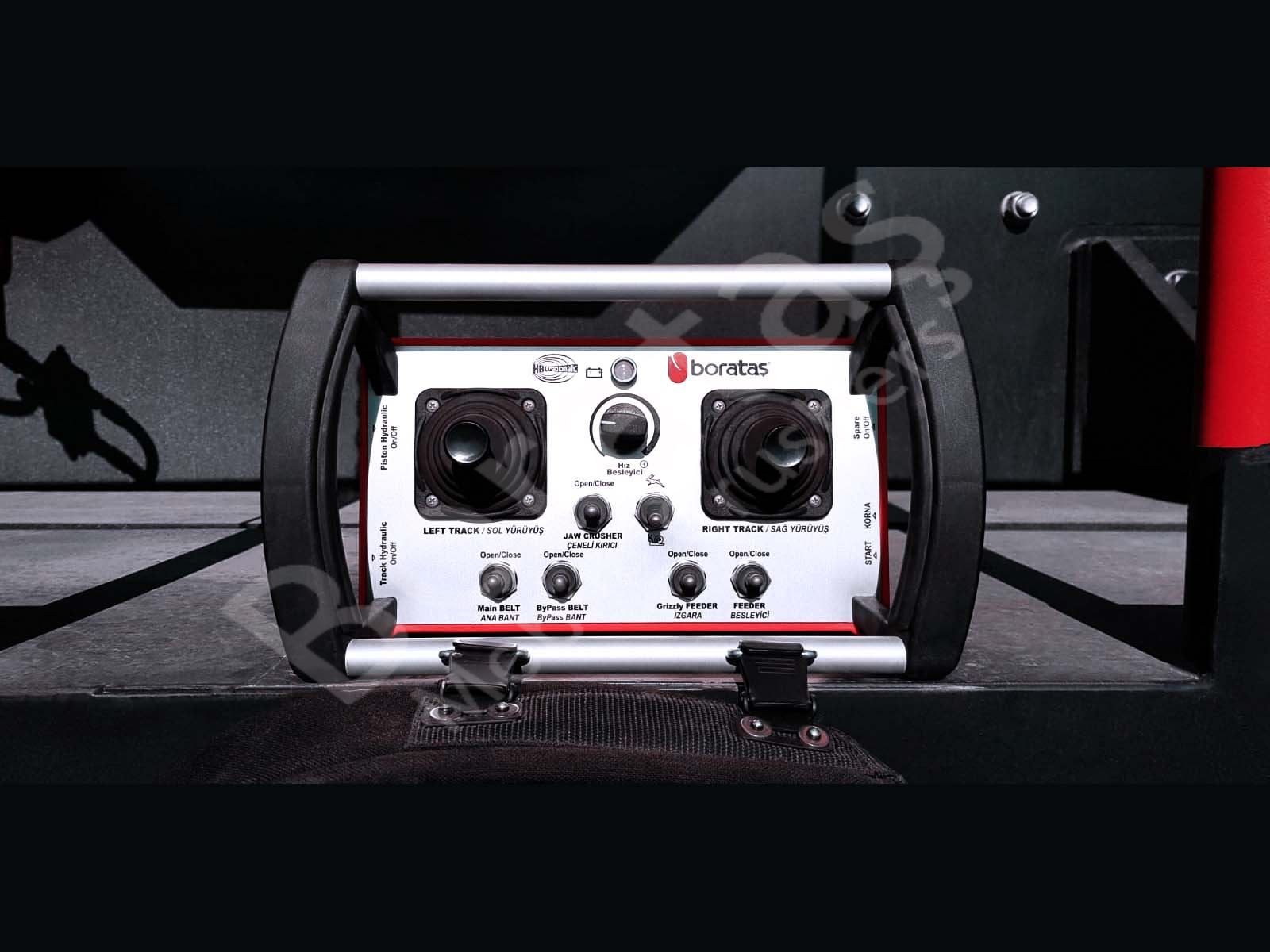

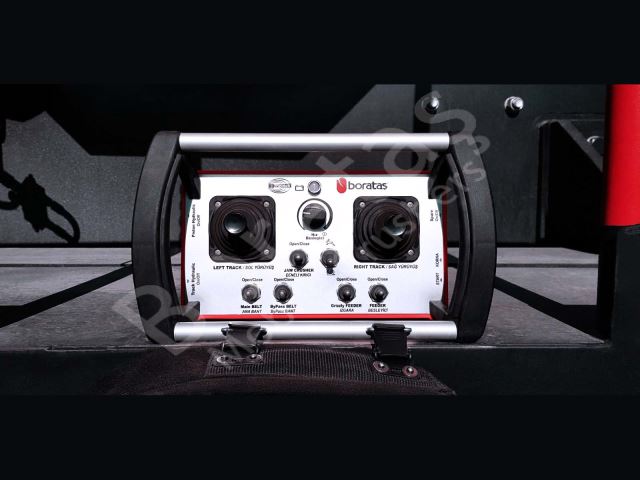

Its durable and heavy duty track system provides mobility on all types of grounds. The mobile jaw crusher is controled with a wireless remote and can go as fast as 1.2km/h.

Easy to Maintain

The PLC screen in the control cabin notifies the user of occuring breakdowns and its place. There are no issues related to hydraulic systems since the machine operates on electricity and diesel. Maintenance and part replacements is very simple and can be done

High Capacity Crushing

The mobile jaw crusher is equipped with reliable and greatly efficient jaw crushers from the BCK series. These crushers are able to crush all types of natural stones at high output even at tight opening settings.

Benefits



  • Adaptable to all applications
  • Mobility, flexibility and compactness
  • Safe and easy transport
  • Robust chassis and track frame
  • Robust and wear resistant feed hopper
  • Low fuel consumption (20-40% less than hydraulic models)
  • Easy and rapid maintenance
  • High uptime and high productivity
  • High crushing capacity
  • Low operating costs






MOBILE JAW CRUSHERS
Model/  Feeding Dimensions CSS setting  Max. Feed. Size  Capacity  Power Total Weight Overall Dimensions
Modèle  Dimensions d‘Alimentation  Dimensions de Sortie Taille max. D'alimentation  Capacité  Puissance  Poids Dimensions générales
Модель Размер Загрузочного Отверстия Ширина Pазгрузочной щели Макс.Разм.  Питаемого Материала  Производительность Общая Мощность  Масса Общие Размеры
  mm mm (min-max) mm t/h (min-max) kVA kg mm (L*W*H)

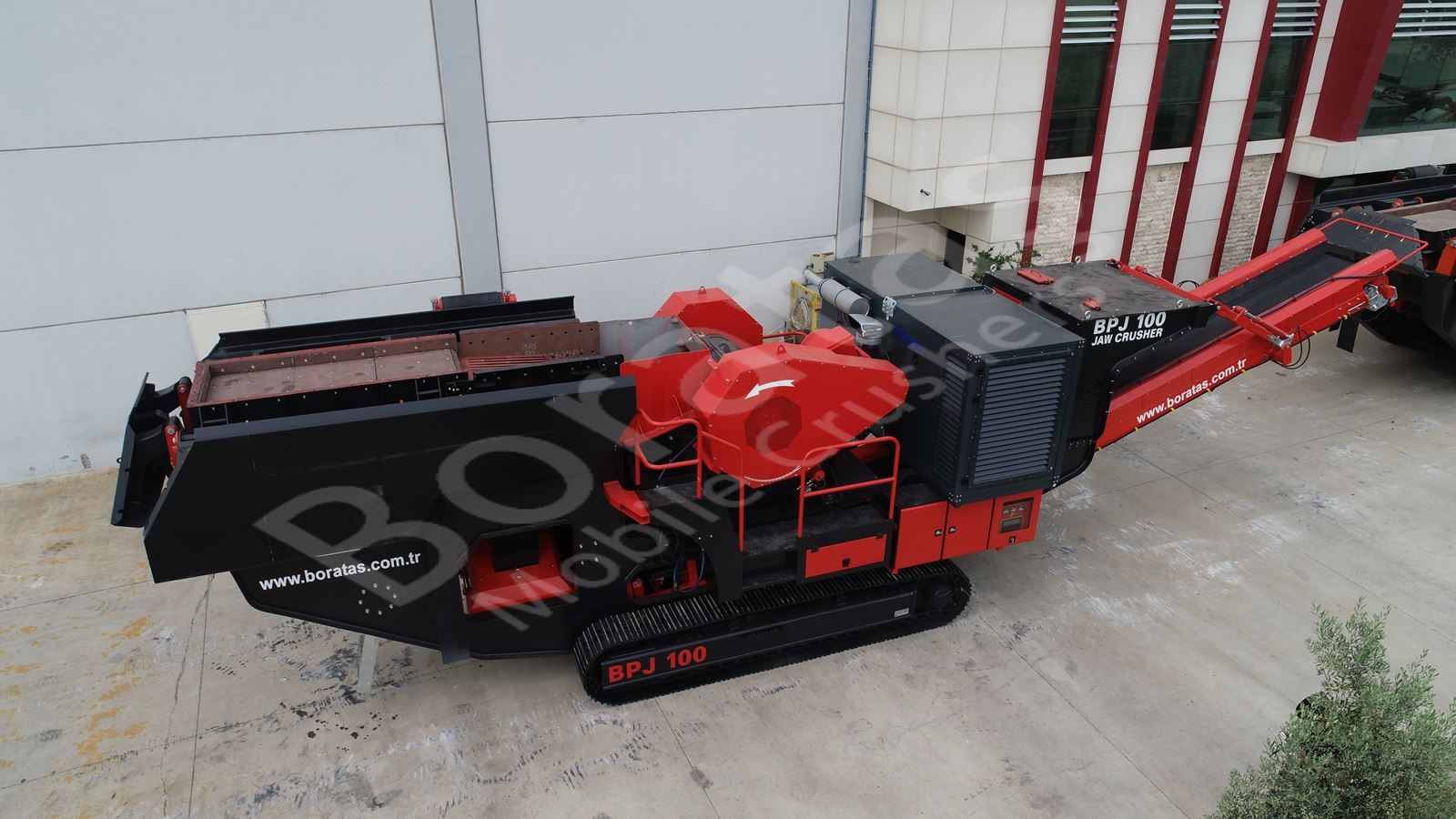

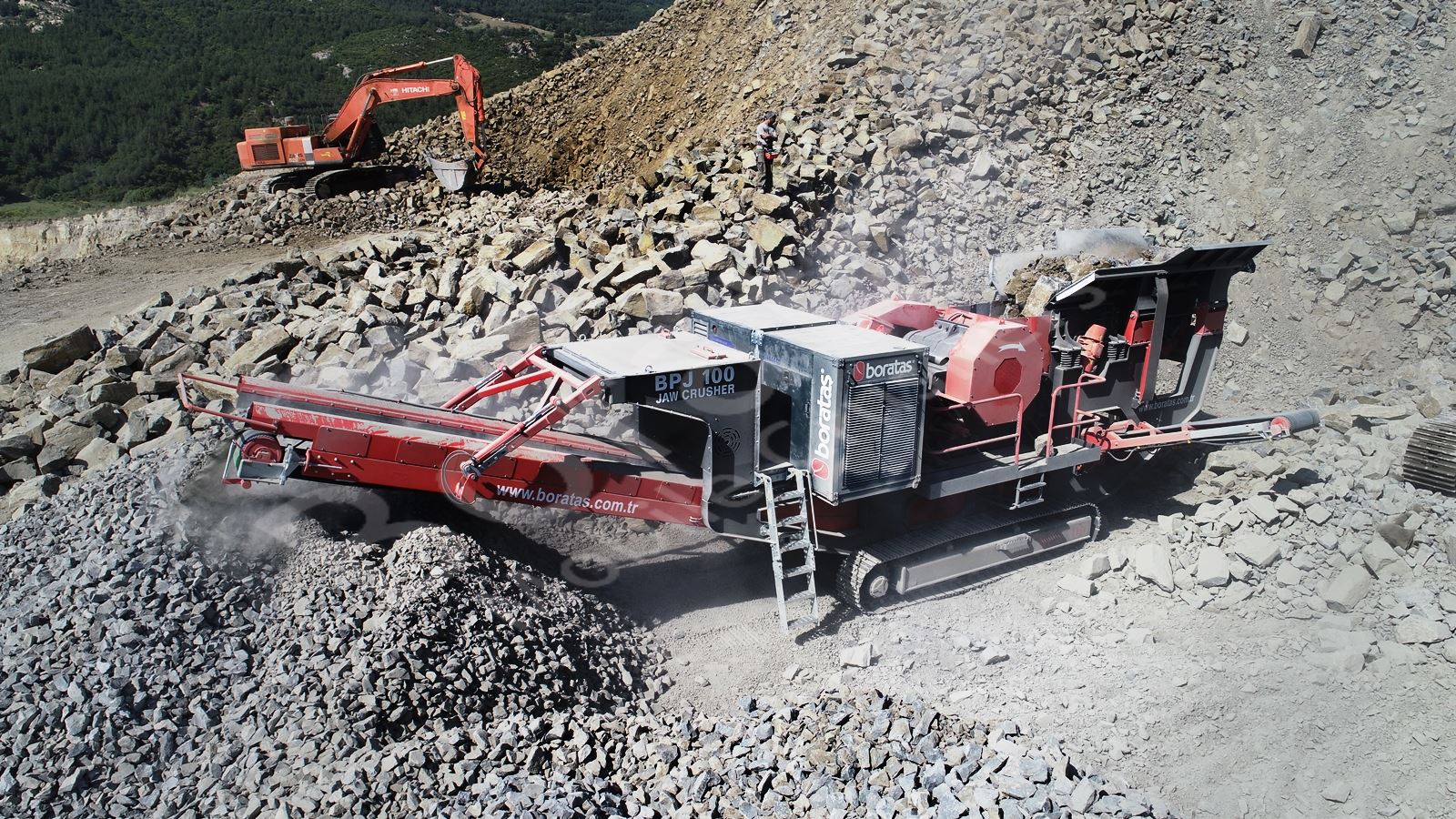

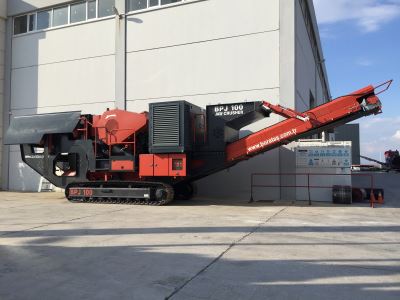

BPJ 100 1.000x650 100-200 600 80-280 363 40.000 15.000x3.200x3.620
BPJ 101 1.100X700 100-220 800 120-350 500 55.000 16.500x3.820x3.620

Mobile Jaw Crushers Videos

Mobile Jaw Crushers 1iIIJ46k8mw
Mobile Jaw Crushers IxLIRE22t6o

What is Mobile Jaw Crusher

Mobile Jaw Crusher usually are used for the primary stage in the multi-stage crushing process. Primary crushers receive material directly from the mine or excavation source. Therefore, they are ideal for crushing the hardest large materials such as granite, gabbro, basalt, iron ore …

The work is applied by strong compression force against the material through a pair of jaws. One of the pairs is stationary and the other moves frequently. The material is fed through a V-shaped chamber, in which the exit is narrower than the opening. The space at the exit of the jaw crusher will determine the size of the crushed material. The crushing power is generated by a motor connected to a flywheel, which transfers inertia from the flywheel to the crusher.

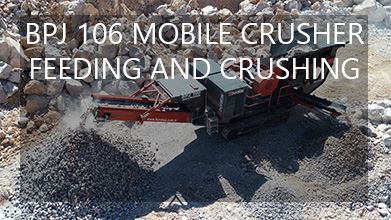

Check this video to watch the feeding and crushing process.

Afterward, the primary crushed material will be moved into the secondary and tertiary crusher plants for reducing the size of the material according to the need.
Check this video to watch how a jaw crusher works in tandem with secondary and the screening afterward.

Because Jaw crushers deal with large-sized materials, they need to be constructed robustly and the quality of the construction is really important.

The size of a jaw crusher shows the size of the opening of the feeding chamber, And the size of the bottom part determines the size of the crushed material. Relatively the difference is defined as a ratio of crushing such as 6:1 or 8:1.

The mobility of Mobile Jaw Crushers is really a very useful and facilitating ability. Especially because they most probably work in tandem with other plants, the operator can easily move it around and adjust the position ideally just by using a remote control.

Also, Boratas Mobile Jaw Crushers (BPJ series) are using Hybrid Technology which provides the option of switching between Diesel and Electric drive. There are lots of benefits of using a Hybrid machine such as low fuel consumption and weather condition flexibility. You can check more information about Hybrid Machines via this link.



As a recap here are some benefits of Boratas Mobile Jaw Crusher:

  • Adaptable to all applications
  • Mobility, flexibility, and compactness
  • Safe and easy transport
  • Robust chassis and track frame
  • Robust and wear-resistant feed hopper
  • Low fuel consumption (20-40% less than hydraulic models)
  • Easy and rapid maintenance
  • High uptime and high productivity
  • High crushing capacity
  • Low operating costs



 Also, Check this demo video of performing a Boratas Mobile Jaw Crusher
