Mobile Impact Crushers

Mobile Impact Crushers Rocktrack of Boratas Machinery are high quality and extremely efficient impact crushers characterized by optimal crushing capacity and superior cubical shaped product production. These mobile crushers are usually used in primary, secondary and tertiary crushing in multistage crushing applications. Moreover, they are usually used in aggregate production, quarrying and recycling applications. Their outstanding overall performance is due to the perfect interaction of all their internal components. Finally, Rocktrack crushersare designed to offer efficient and versatile solutions producing a high quality end product.

Rocktrack mobile impact crushers are used for crushing materials with low to medium hardness levels such as limestone and reprocessing residual construction materials. Being easy to use , Rocktrack produces high quality final product with a cubic shape which later can be directly used into concrete or asphalt production.

Being hybrid, Rocktrack mobile impact crushers are electrical-diesel driven machines. Accordingly, they do not require any heavy maintenance related to hydraulic systems such as pipe replacements or oil leakages which reduces maintenance costs and increases productivity dramatically.

These mobile impact crushing plants are the perfect combination of high mobility and extreme compactness. Their high mobility provides easy movement between sites no matter the type of ground. Furthermore, They do not require any heavy investment in concrete works and personnel.

Our mobile crushers are ideal for :
  • Recycling applications such as asphalt and concrete
  • Limestone and natural stones with medium hardness

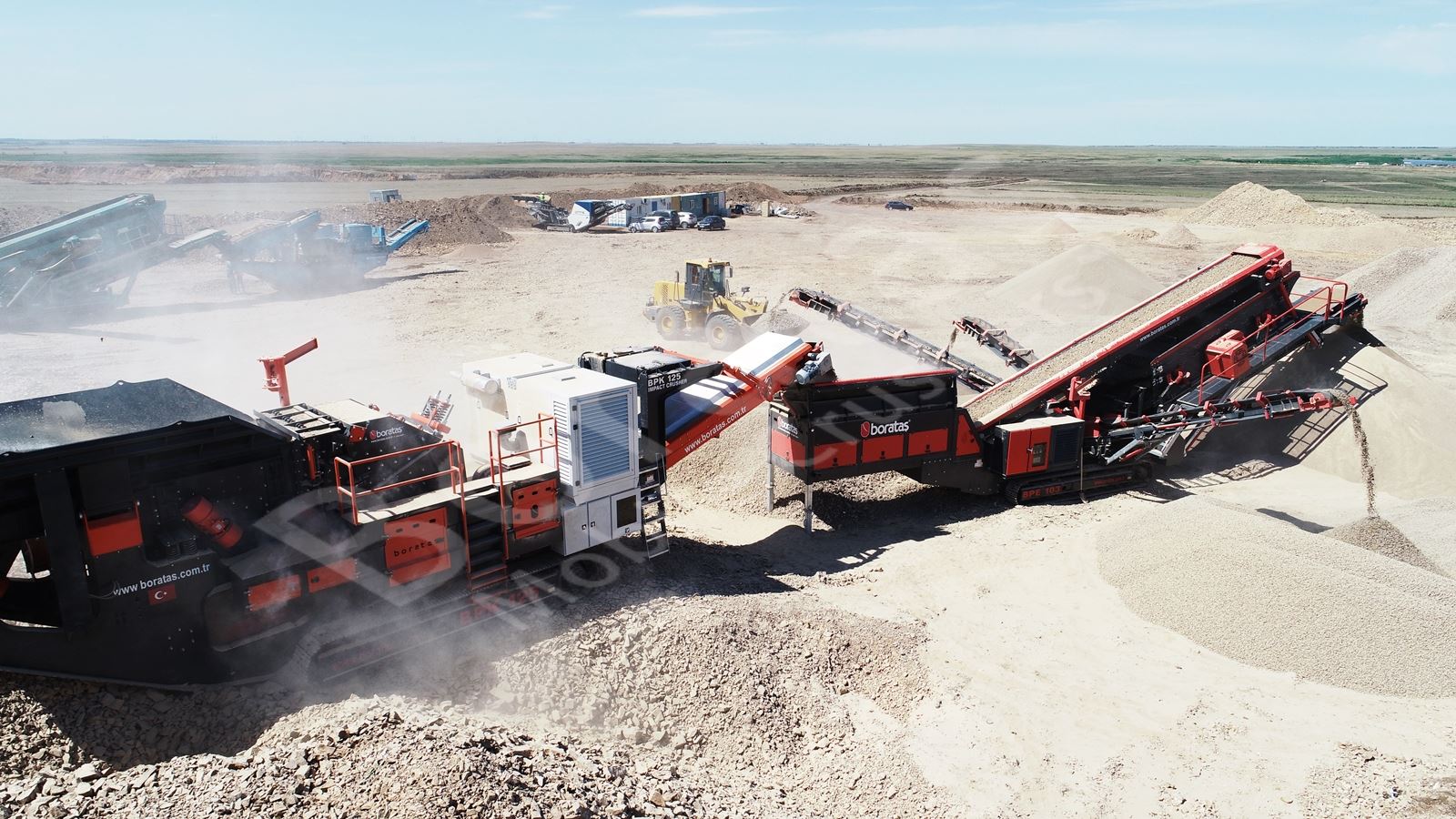

  • Multistage crushing and screening applications
  • Users who wants a precise end product

General characteristics of our mobile units :
  • Easy to Use
  • Easy to Maintain
  • Safe to Use
  • High Efficiency

Our wide range of mobile crushing equipment consists of :

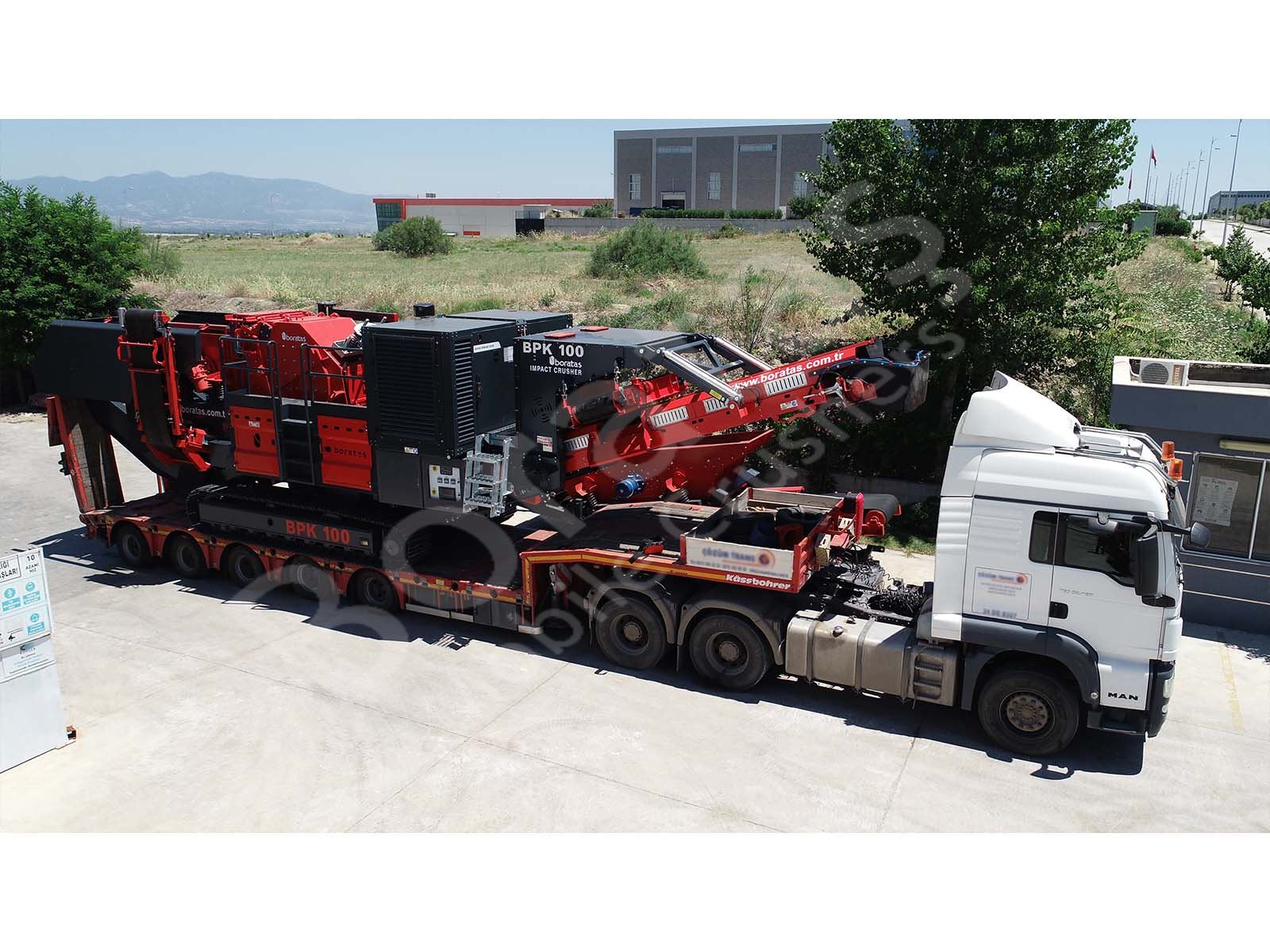

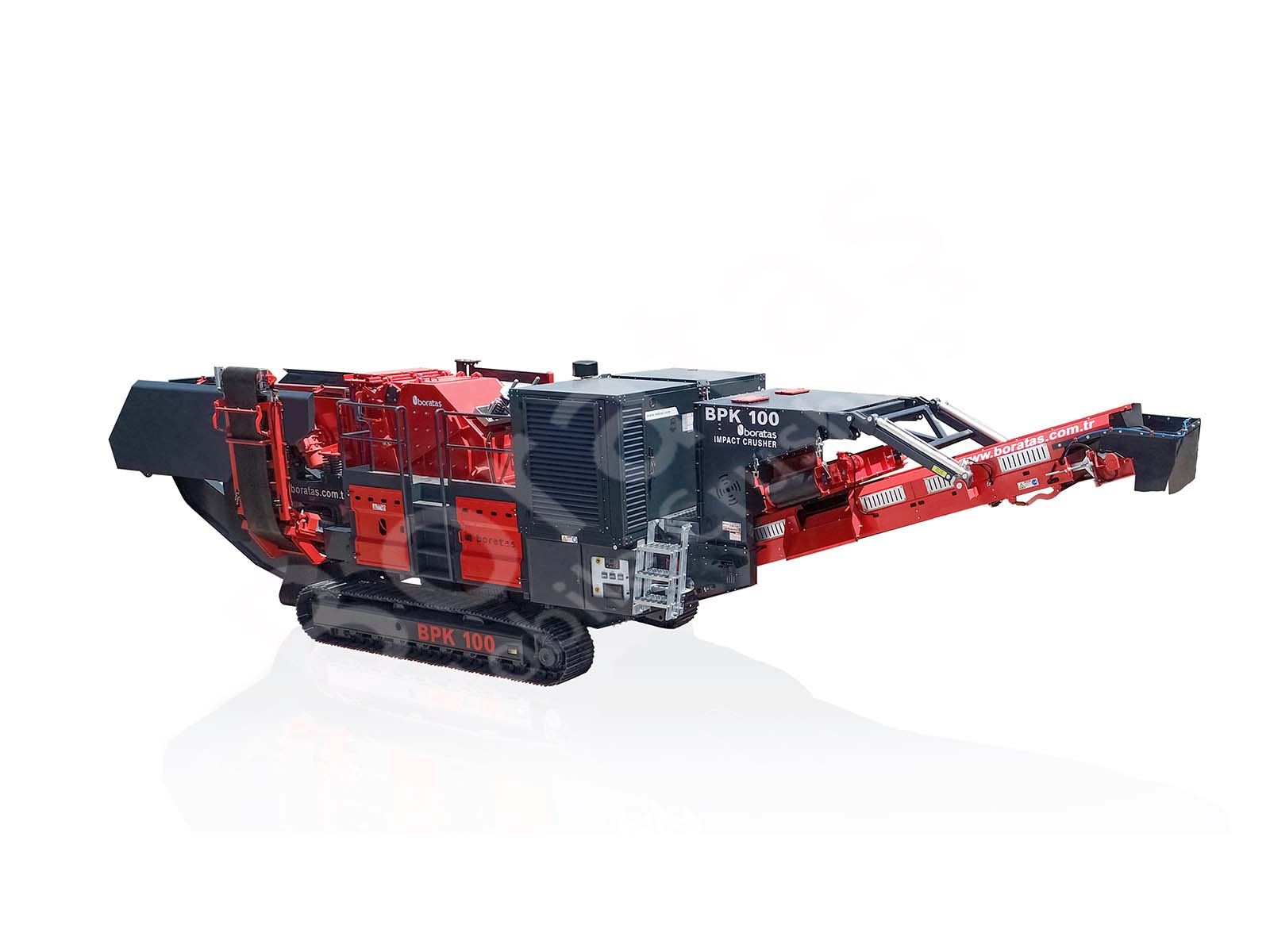

Rocktrack BPK100 Mobile Impact Crushers
With a capacity up to 180 tph, Rocktrack BPK100 impact crushers are ideal for crushing low- medium hardness materials. They are ideal for users looking for a capacity of 100-180 tph.

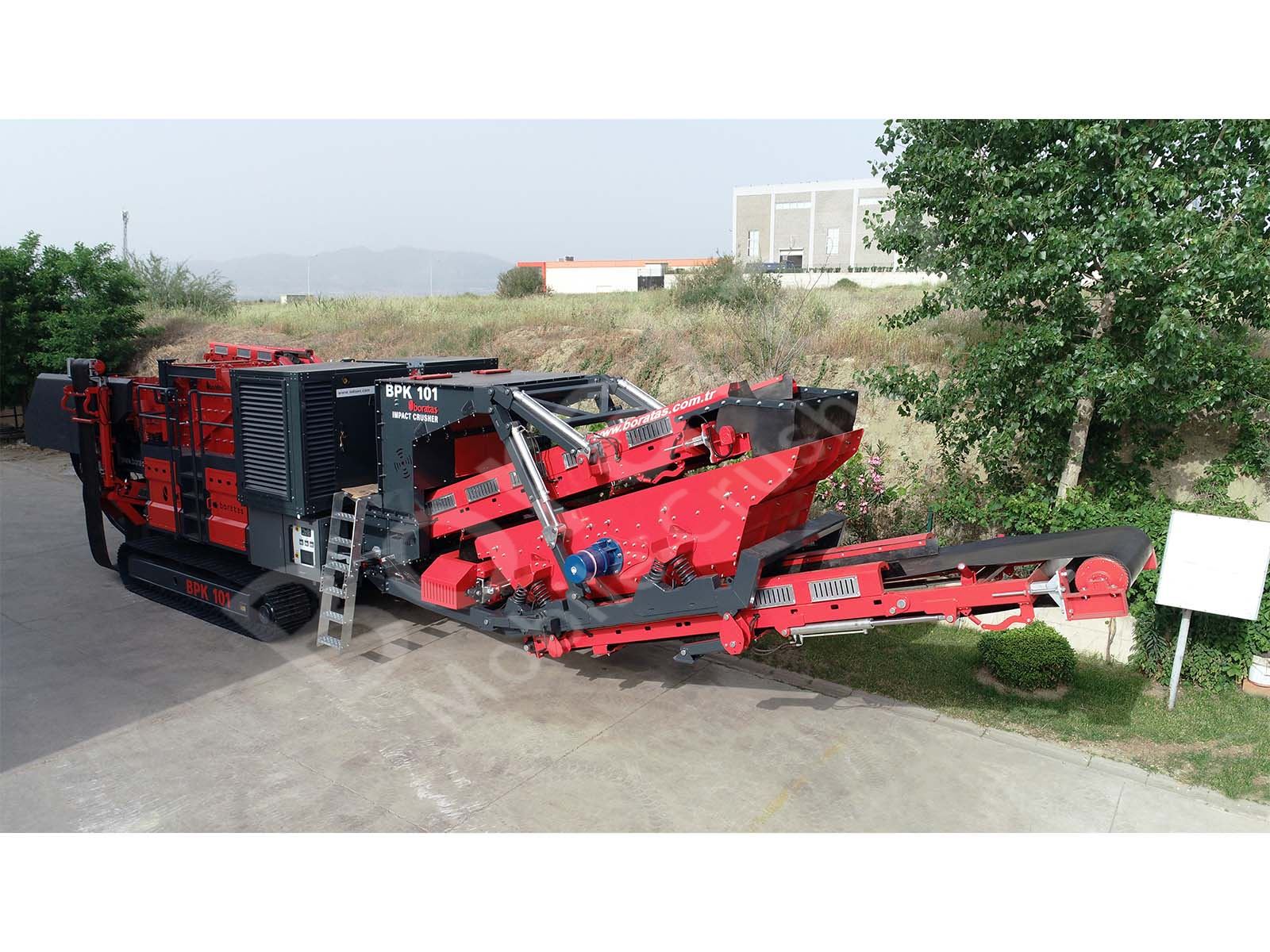

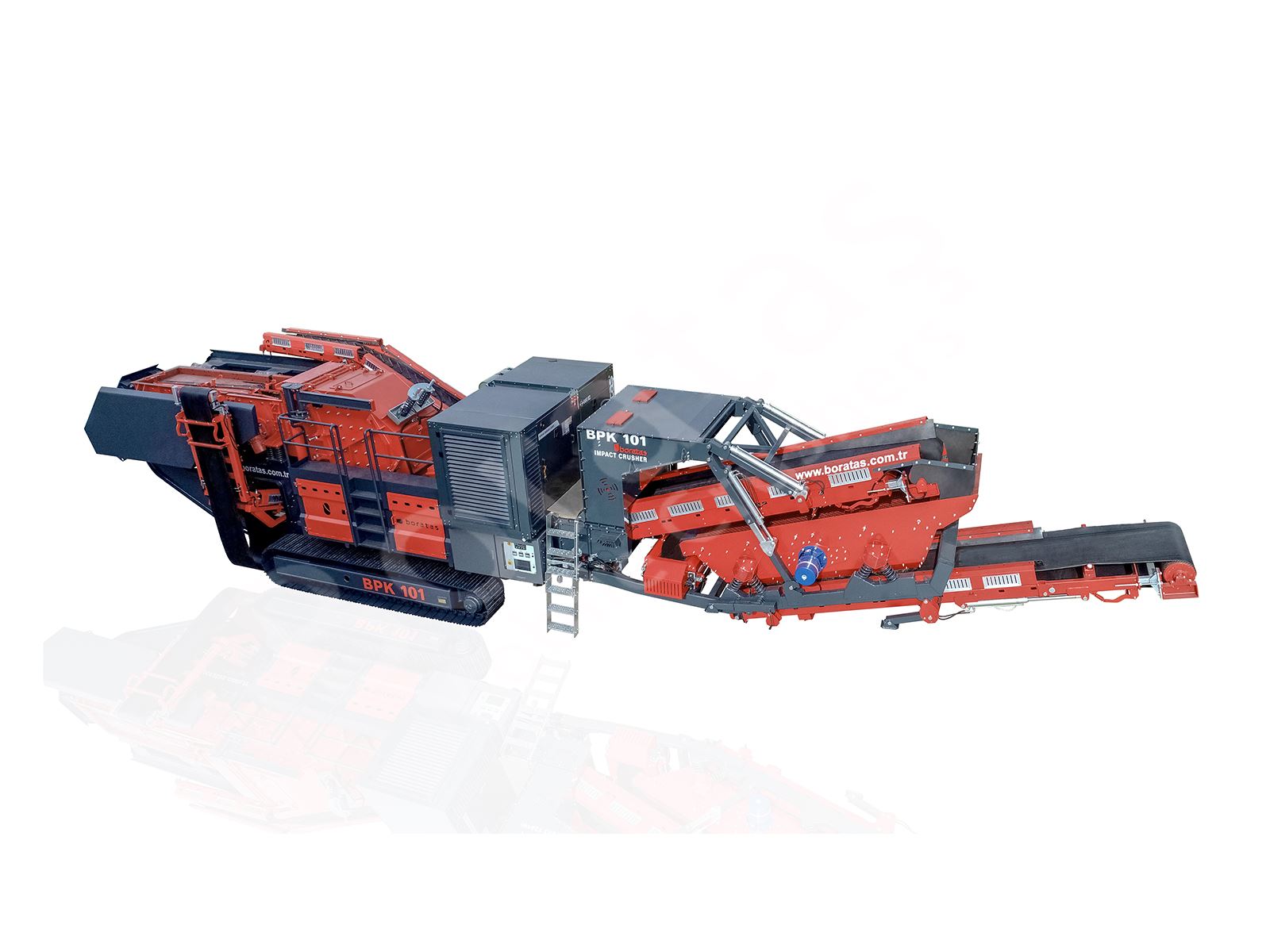

Rocktrack BPK101 Mobile Impact Crushers
Featuring a single-deck screen and with a capacity up to 180 tph, Rocktrack BPK101 impact crushers are ideal for crushing low-medium hardness materials to produce a precise superior product. They are ideal for users looking for a capacity of 100-180 tph and a precise product.

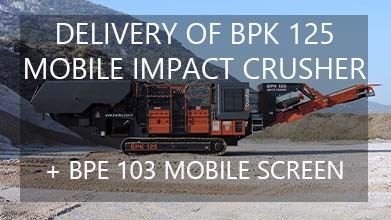

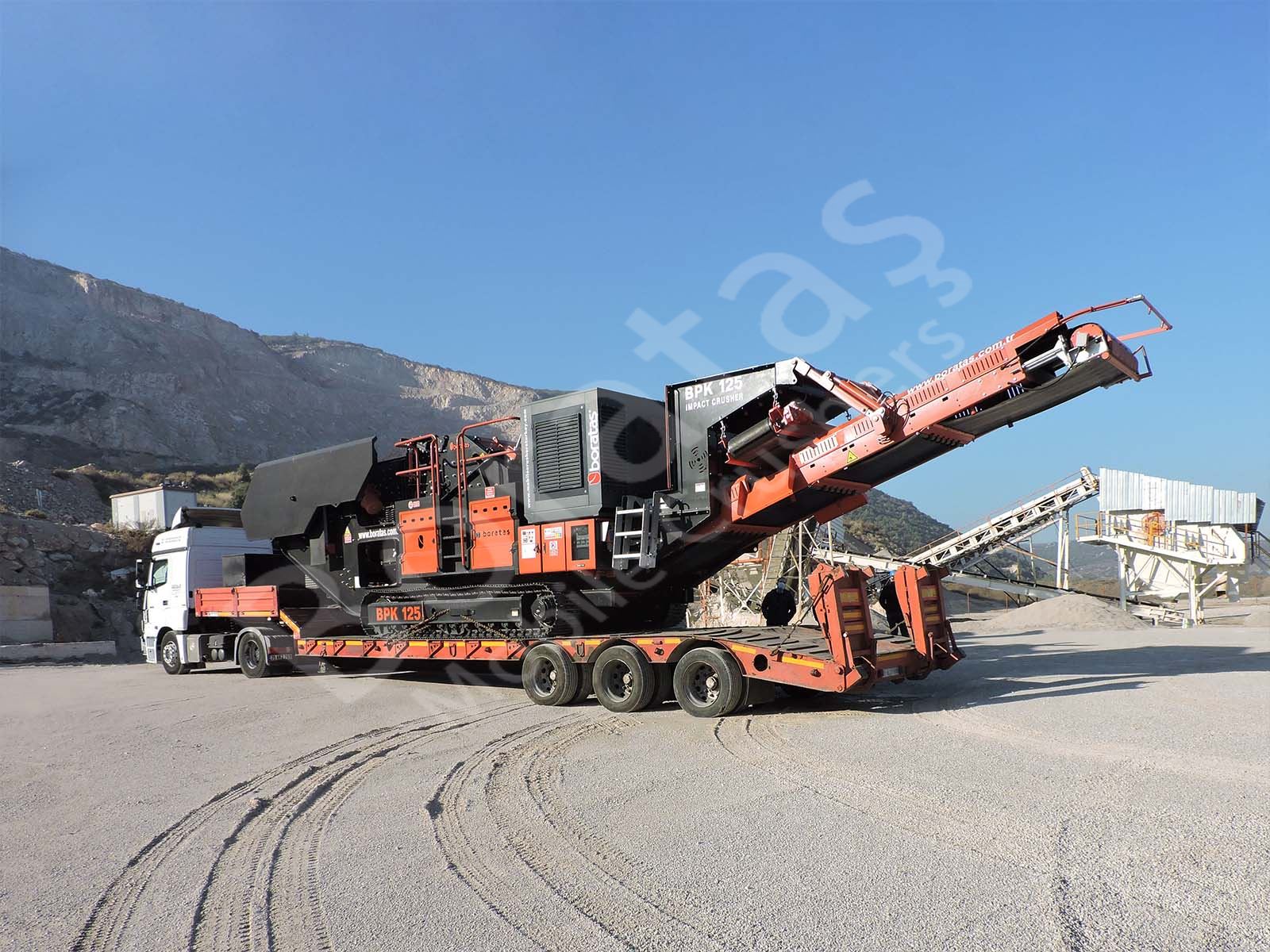

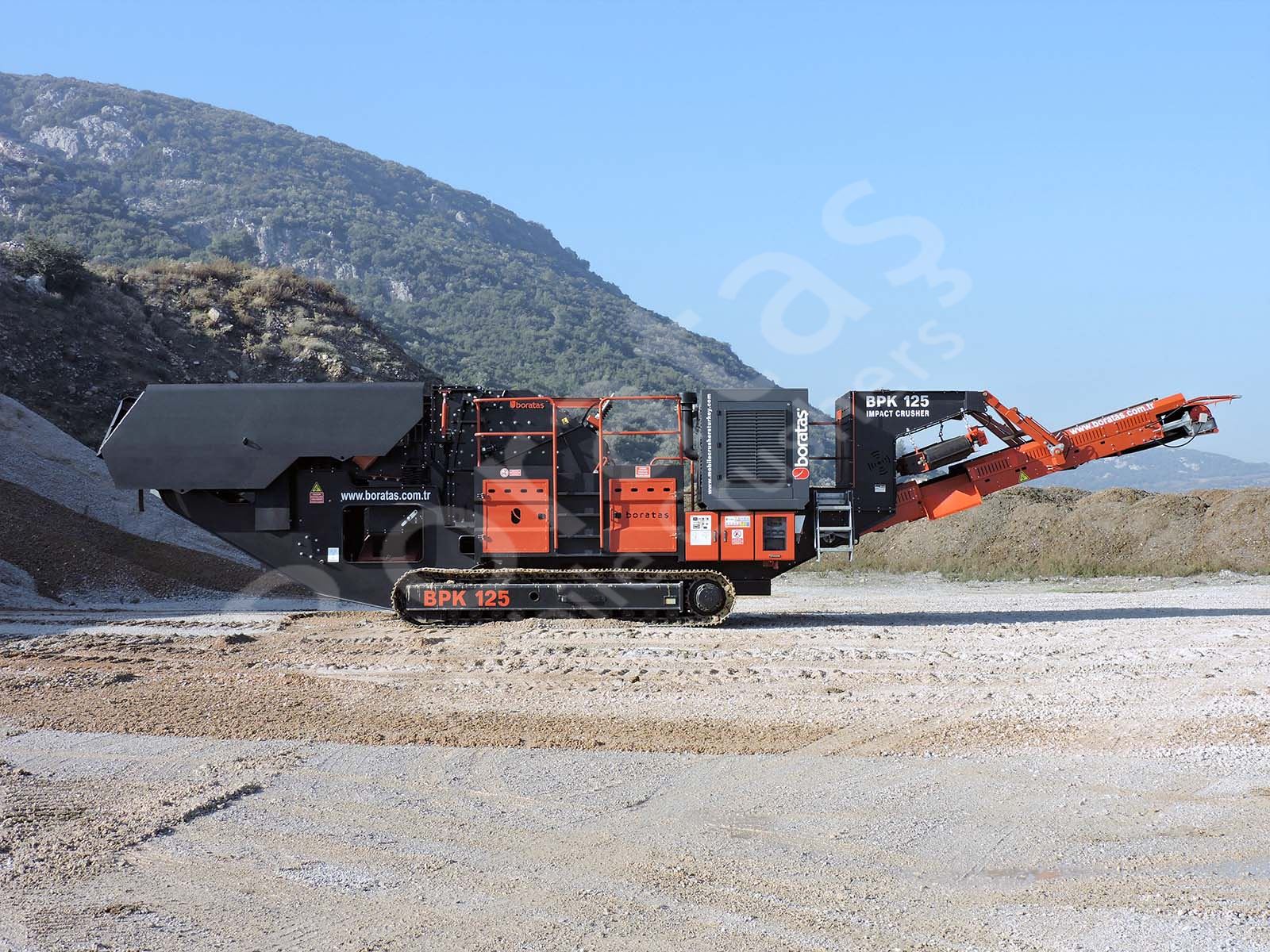

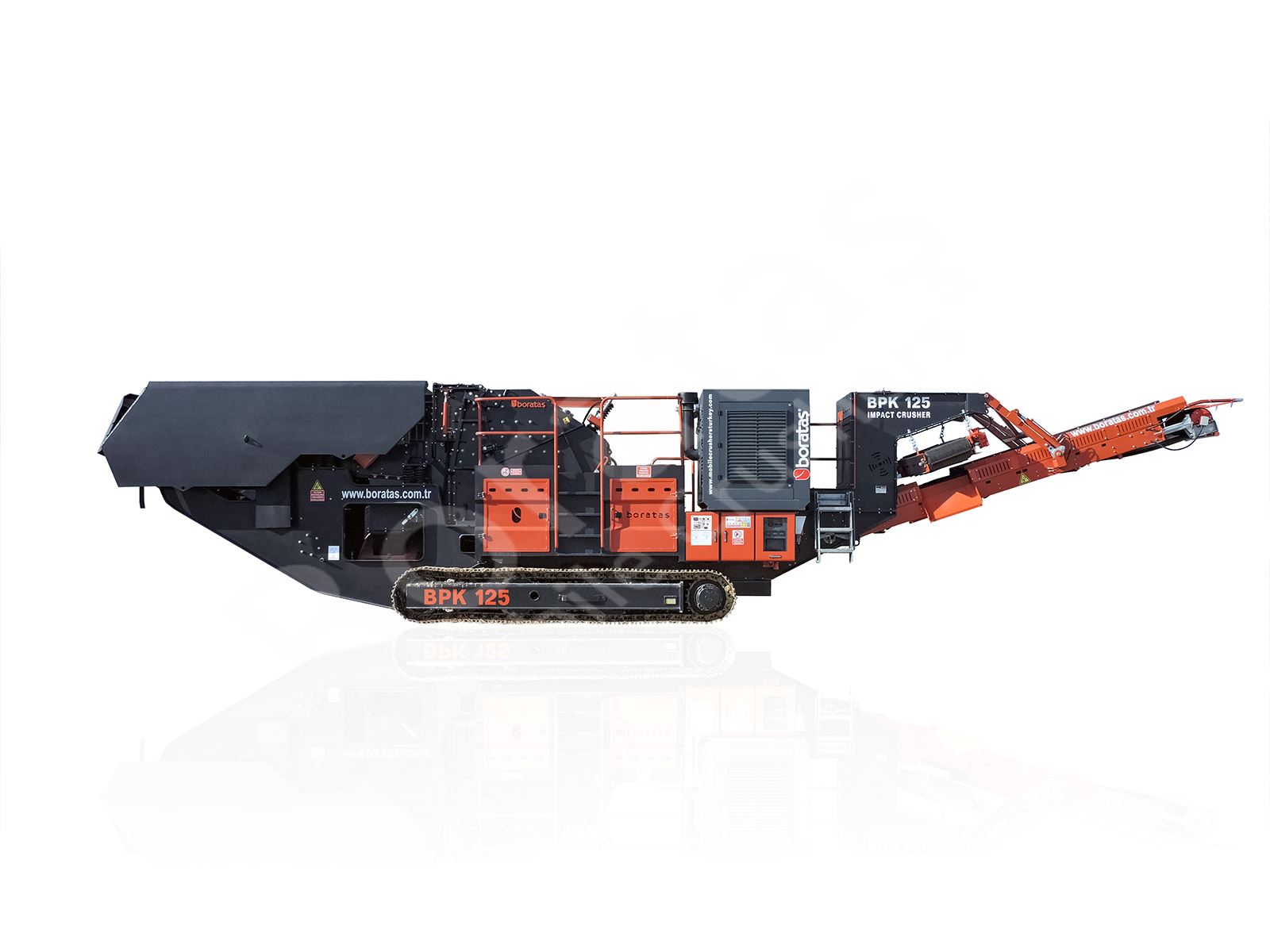

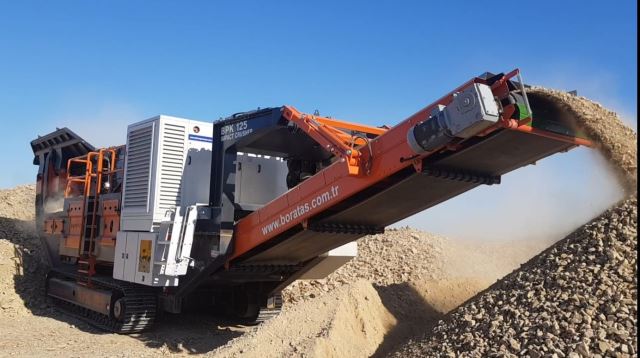

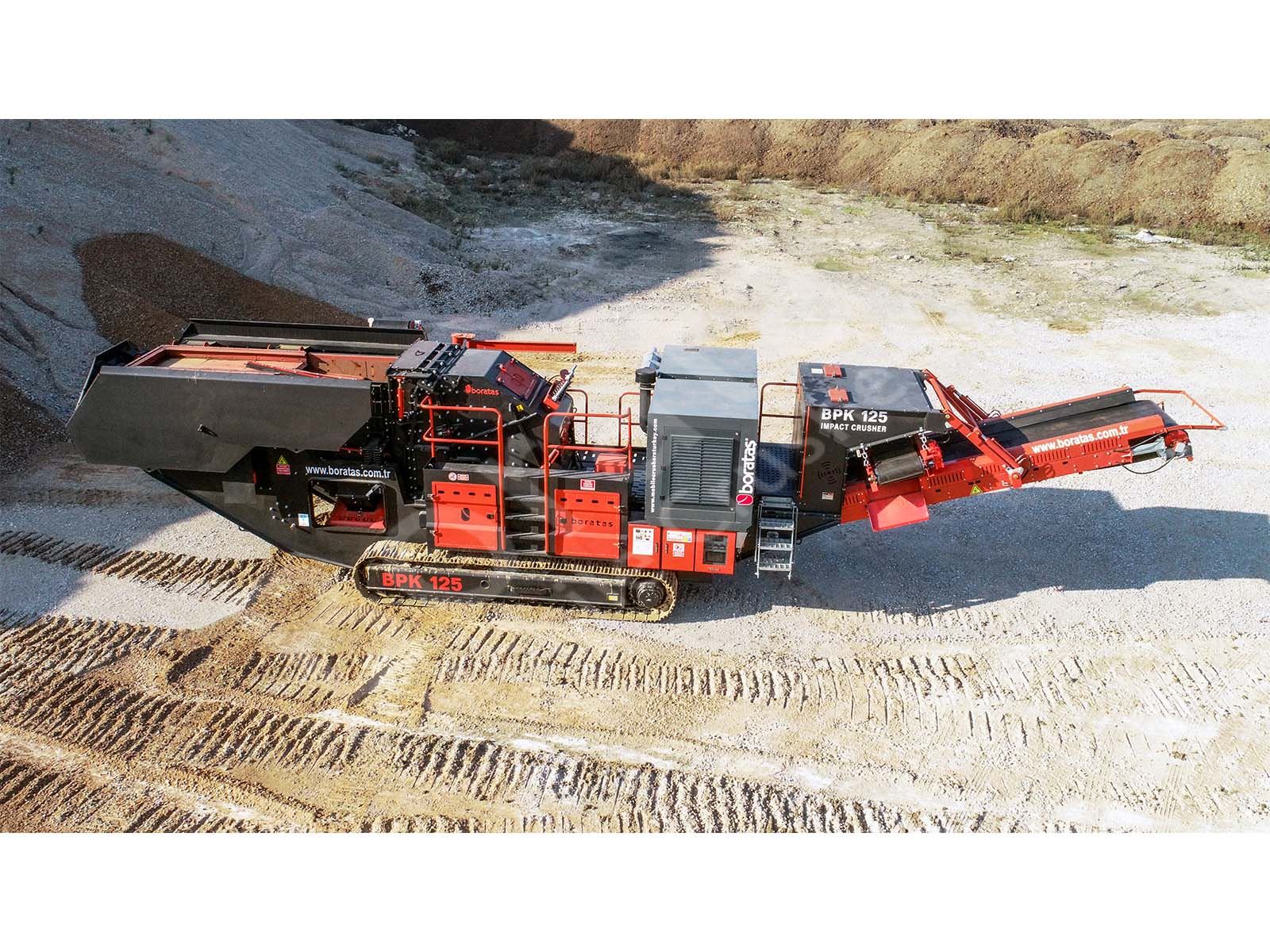

Rocktrack BPK125 Mobile Impact Crushers
With a capacity up to 250 tph, Rocktrack BPK125 impact crushers are ideal for crushing low- medium hardness materials. They are ideal for users looking for a capacity of 150-250 tph.

Rocktrack BPK126 Mobile Impact Crushers
Featuring a single-deck screen and with a capacity up to 250 tph, Rocktrack BPK126 impact crushers are ideal for crushing low-medium hardness materials to produce a precise superior product. They are ideal for users looking for a capacity of 150-250 tph and a precise product.

Advantages

  • Adaptable to all applications
  • Mobility, flexibility and compactness
  • Easy maintenance
  • High quality finished product with excellent cubic shape
  • Low fuel consumption (10-15% less)
  • Low operating costs
Characteristics
  • Possibility of power supply with external network and diesel generator
  • Hydraulically foldable hopper plates
  • Vibrating feeder and grid screen with independent power supply
  • Integrated dust reduction system
  • Mobile crusher controlled by control command
  • Drum motor for the conveyor belt
  • Control command
  • PLC control system







Features
  • Possibility of power supply with external network and diesel generator
  • Hydraulically foldable hopper
  • Independent vibrating feeder and grid screen(grizzly screen)
  • Mobile crusher controlled by remote control
  • Drum motor for the conveyor belt
  • Control command based PLC control system which allows to see which components are On/Off
MOBILE IMPACT CRUSHERS
Model/  Feeding Dimensions CSS setting  Max. Feed. Size  Capacity  Power Total Weight Overall Dimensions
Modèle  Dimensions d‘Alimentation  Dimensions de Sortie Taille max. D'alimentation  Capacité  Puissance  Poids Dimensions générales
Модель Размер Загрузочного Отверстия Ширина Pазгрузочной щели Макс.Разм.  Питаемого Материала  Производительность Общая Мощность  Масса Общие Размеры
  mm mm (min) mm t/h (min-max) kVA kg mm (L*W*H)
BPK 100 1.100X1.000 15 600 80-280 363 40.000 14.800x3.200x3.500
BPK 125 1.100X700 15 800 120-350 500 55.000 16.200x3.320x3.500
