Mobile Impact Crushers BPK101

Mobile impact crushers BPK101 of the Rocktrack series are highly efficient mobile crushers with excellent reduction ratios and cubical shaping abilities featuring a single-deck screen connected to the main tail conveyor for an extremely accurate end product.  These mobile units are used for aggregate production and recycling. BPK101 can either be supplied as standard or customized by adding various options.

Ideal For;
  • Recycling applications such as asphalt and concrete
  • Limestone and natural stones with medium hardness
  • Multistage crushing and screening applications
  • Users who wants a precise end product



Mobility Combined With Productivity



The stand-out feature of Rocktrack mobile impact crushers BPK101 are their mobility, combined with high productivity per hour. These mobile units are fully self-contained on their tracked undercarriage and can easily be driven off a trailer by one operator and quickly put to work, with excellent capability for moving directly to materials.



High Quality End Product



Rocktrack mobile impact crushers BPK101 feature a highly efficient impact crusher from the PDK series which stands out thanks to its high reduction ratio and durability. Moreover, these crushers have outstanding shaping abilities, thus producing a superior end product with the perfect cubical shape. Accordingly, adding a single-deck screen enables the mobile impact crushers to produce one type of product with a precise and accurate dimension.



Fuel Efficiency and Electric Power



Not only does electric power reduce the carbon footprint, it can save contractors up to 30 percent on fuel costs when compared to the diesel-hydraulic drive systems.

Moreover, hybrid models of mobile impact crushers are more and more demanded considering the importance of fuel efficiency, rising transport and operational costs and the global focus on reducing emissions.



Maintenance and Ease of Use



Rocktrack BPK101 mobile impact crushers start up is as easy as literally pressing one button. Driving these units is done with a control remote which is very simple to use. The PLC screen in the panel shows all the main components of the machines. In case of breakdown, the screen will point out the breakdown location for inspection. Parts subjected to wear are easily accessible and are replaced within a short period of time.



Reliability



Thanks to many years of experience in designing, engineering and manufacturing crushers, combined with excessive quality testing and high quality components, the Rocktrack mobile impact crushers are reliable machines which have proven to always deliver a superior product at a high output.



Benefits



  • Adaptable to all applications
  • Mobility, flexibility and compactness
  • Safe and easy transport
  • Easy and rapid maintenance
  • High quality finished product with excellent cubic shape
  • Low fuel consumption (20-40% less than hydraulic models)
  • Low operating costs
  • High crushing capacity
  • Accurate and precise end product



Standart Version
  • Featuring highly efficient Impact crusher from BPK series with high capacity
  • By-pass chute with side hydraulically foldable conveyor
  • One deck screen
  • Return Belt
  • Wireless remote for easy control
  • Bunker with hydraulically foldable back and side
  • Electric – Diesel
  • Components with direct drive
  • Dust reduction system
  • Drum motors for conveyors
  • PLC control system
  • Vibrating Feeder with Grizzly screen
Options
  • Metal Separator Magnet
  • Hardox armoured bunker
  • Rotor Type
  • Polyurethane mesh
  • Hardox Armoured Perforated sheet

Detail Value
Feed Capacity 100-180 tph
Feed Opening 1.050x900 mm
Weight 42.000 kg
Engine 363 kVA
Screen 1.300x3.000 mm

Mobile Impact Crushers BPK101 Videos

Mobile Impact Crushers BPK101 My-ZZikJgTk

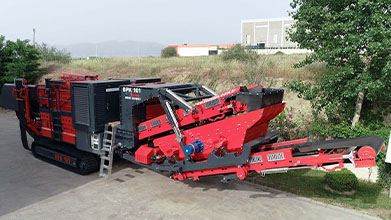

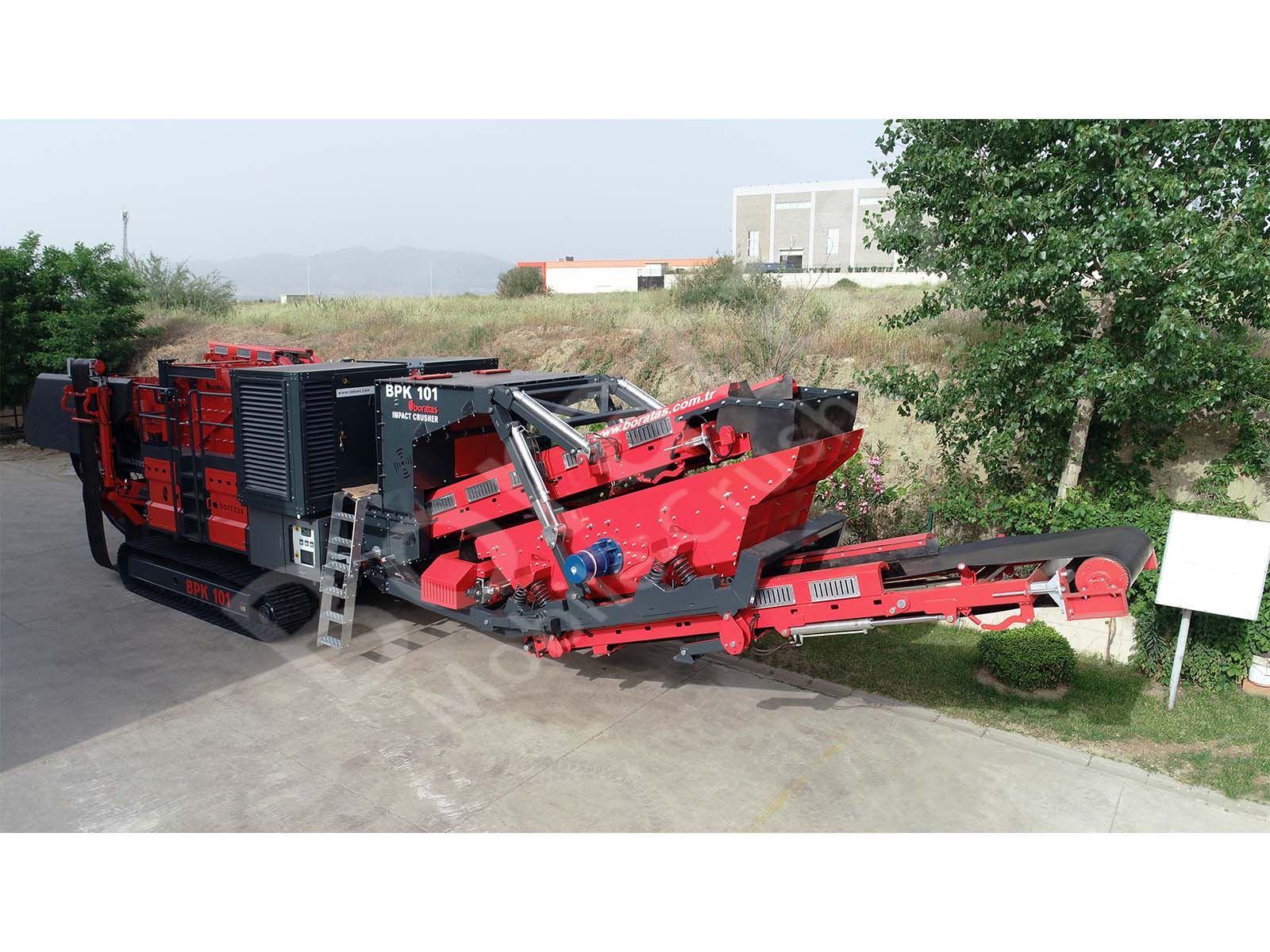

Mobile Impact Crushers BPK101 Photos
